MOM+CO2-5001,模塊式氧氣監測儀,Modular Oxygen Monitor + CO2 (MOM+CO2),低氧培養氧氣二氧化碳監測器,氧氣二氧化碳多功能監測器

型號:MOM+CO2-5001
聯系人:李勝亮
聯系電話:18618101725（微信同）
品牌:tissue control/, in

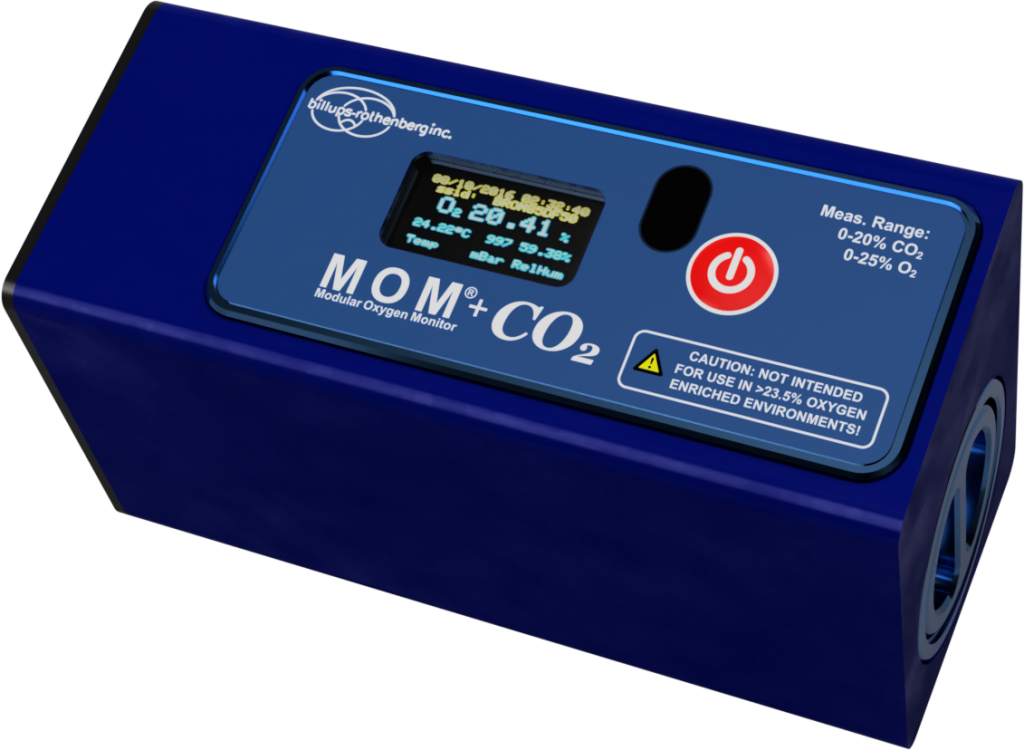

Modular Oxygen Monitor + CO2 (MOM+CO2)

The Modular Oxygen Monitor + CO2 (MOM+CO2) sensor is an environmental monitoring device, designed to be placed inside the Modular Incubator Chamber (MIC-101) as well as conventional cell culture incubators. It features an OLED display as well as onboard data logging and remote wireless access of its integrated gas (O2 & CO2), temperature, humidity and pressure sensors.

MOM+CO2 is designed to operate in the harsh high-humidity environment of tissue culture incubators. It features revolutionary solid-state sensors for gas monitoring, eliminating the constant maintenance and re-calibration required by conventional electrochemical and galvanic sensors (for oxygen monitoring) and incandescent IR sensors (for carbon dioxide). The MOM+CO2 is factory calibrated with NIST certified gases for temperature, pressure and humidity and will not need re-calibration under normal conditions.

It has flexible operating modes, ranging from a rapid data acquisition mode for real-time gas mixing to a low-power mode, waking up on a configurable schedule, allowing for long term data acquisition.

MOM+CO2 uses industry standard 802.11 WiFi wireless technology for remote monitoring. Multiple units can pair with a separate Data Aggregator Module which allows remote data logging and instant network access to live as well as logged data via a web browser or by API. In labs without wireless networking, it can be configured as a direct Access Point, allowing laptops and mobile devices to connect directly to it. An API is available upon request for custom applications.

Its safe LiFePO4 battery technology, developed by the University of Texas, can support from >24 hours in continuous rapid data acquisition mode to over a week at normal data logging rates.

  • Sensors
    • Oxygen (O2) Sensor
      • Technology: Solid-state Fluorescence Quenching, Diffusion Sampling
      • Range: 0% to 25%
      • Accuracy tolerance: < 2% FS
      • Resolution: 0.01%
      • Operating Conditions: -30°C to 60°C, 500-1200mbar
    • Carbon Dioxide (CO2) Sensor
      • Technology: Solid-state NDIR 4.2um-4.4um absorption, Diffusion sampling
      • Range: 0% to 20%
      • Accuracy tolerance: ±(70ppm +5% of reading) @STP
      • Operating Conditions: 0°C to 50°C standard (-25C to 55C extended), 500mbar to 10 bar
    • Barometric Pressure Sensor
      • Range: 500-1200mbar
      • Accuracy tolerance: 5mbar
      • Resolution: 1mbar
    • Temperature Sensor
      • Range: -40°C to 125°C
      • Accuracy tolerance: ±0.2°C (0°C to 90°C)
      • Resolution: 0.01°C
      • Long-term Drift (max): <0.03°C/year
    • Humidity Sensor
      • Range: 0%RH to 100%RH
      • Accuracy tolerance: ±2%RH
      • Resolution: 0.01%RH
      • Hysteresis: ±0.8%RH (@25°C)
      • Long-term Drift (typical) : <0.25%RH/year

Benefits

  • Reliable and accurate performance in harsh environments.
  • Long lifetime – low maintenance.
  • Solid state sensors – no moving parts, non-depleting technology, no heated filaments
  • Virtually no gas cross-sensitivity. Works where other sensor technologies don’t.
  • Vibration and shock resistant.
  • Compensated for temperature, humidity and pressure.
  • Wireless tested to work in water-jacketed incubators.

Features

  • Small footprint – fits in compact enclosures
  • Factory calibrated & Maintenance free – no re-calibration required in normal operation.
  • Safe rechargeable battery technology (LiFePO4), unit comes with charger.
  • Designed and Manufactured in the United States

配套的低氧培養系統


代理，mic101,mic-101細胞氣體成分控制培養系統
細胞缺氧培養,brincubator,Modular Incubator Chamber
型號:mic101,mic-101
價格:請致電：010-67529703
品牌:

產品描述

應用于體外受精、艾滋病毒的分離、建立低氧、高氧和正常含氧量的環境條件，器官培養和大量細胞株的培養。每一個單元都是一個du立的培養室，可以建立所需的培養室擁有良好的氣密性和快速的氣體交換特性，快速經濟的形成一個穩定組織培養環境（包括氣體濃度和濕度）。

MIC-101培養室

? 三層支架，空閑充裕

?主體材質是透明的聚碳酸酯，有非常高的透視性和耐久性
? 培養室可以堆疊擺放、內扣連接后振蕩培養，作為儲存室節省空間
? 內置多用途托盤，方便放置培養皿、試管、組織培養瓶、微量板等
? 方便簡單的蓋子和 Marman 夾設計，使實驗操作便捷
? all組件都wu毒，可酒精消毒
? 培養室內部夾角wu縫隙連接便于清洗和去污
? 圓柱腔的幾何形狀提供了極好的氣體分布
?O 型圈有著完美的氣密性密封

尺寸
外徑：直徑 31cm 高 11cm
內徑：26.7cm
板間間隙：2.3cm
容量
84 個 35mm 培養皿
27 個 60mm 培養皿
12 個 100mm 培養皿
9 個 96 孔培養板
18 個 25cm2 組織培養瓶


流量計

流量計包括單流量計和雙流量計 2 種，能幫用戶確定知道何時獲得 100％氣體交換，流量可在 3~25L/min（或 0.1~10LPM）之間任意調節。

單流量計被用來控制預混合氣體的流率；

雙流量計除了控制氣體流率還可以用來混合氣體（雙流量計被用作檢測與氧氣檢測器組合使用）。

每個培養室的體積大約為 8L。
? 單流量計用于控制預混合氣體的流速時為每分鐘 1.0~25L （或 0.1~10LPM

雙流量計通常用于需要對 O2 和 CO2 的濃度進行調整以確定氣體混合后效果的實驗。此系統有兩個流量計，一個為 0.1~1.0LPM，另一個為 0.1~10LPM, 有兩個不同的管口，允許氣體從兩個不同的氣瓶輸入。當流量計為 0.1-1.0LPM 流量計的進氣口被關閉時，雙流量計可以以相同的方式作為單個流量計可用于預混合氣體。

使用本設備發表的高水平文章

te色:

1)密封性好，氮氣消耗量低，正能做到低氧;

2)經濟簡便

3)缺氧\高氧模塊化孵化室涉及為類似坩堝的裝置,上密封室下密封室(連接有進出氣管道)、聚碳酸酯材質的隔層架、不銹鋼密封扣件。

4)使用方便，經濟耐用，節省空間

5)內置多用途托盤，方便放置培養皿、試管、組織培養瓶、微量板等

6)all組件都wu毒，可酒精消毒。 6)圓柱腔的幾何形狀提供了極好的氣體分布。

7)可靠的氣密性密封，能100%控制氣體含量和交換,0.1%濃度控制；

8)可以放置在二氧化碳培養箱內，與其他條件的形成嚴格對照

9)應用范圍：安quan、可靠的缺氧、常氧、高氧模塊化孵化室廣泛應用在體外受精、艾滋病毒隔離、建立缺氧、高氧、常氧環境條件器官培養的細胞株培養。
