voxel8 三維電子材料打印機及電子打印耗材

型號:PLA Reel - Dark Grey
聯系人:李勝亮
聯系電話:18618101725
品牌:美國voxel-8

voxel8 三維電子材料打印機及電子打印耗材

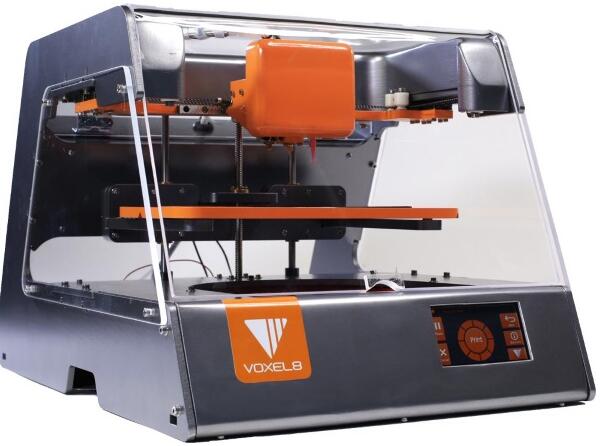

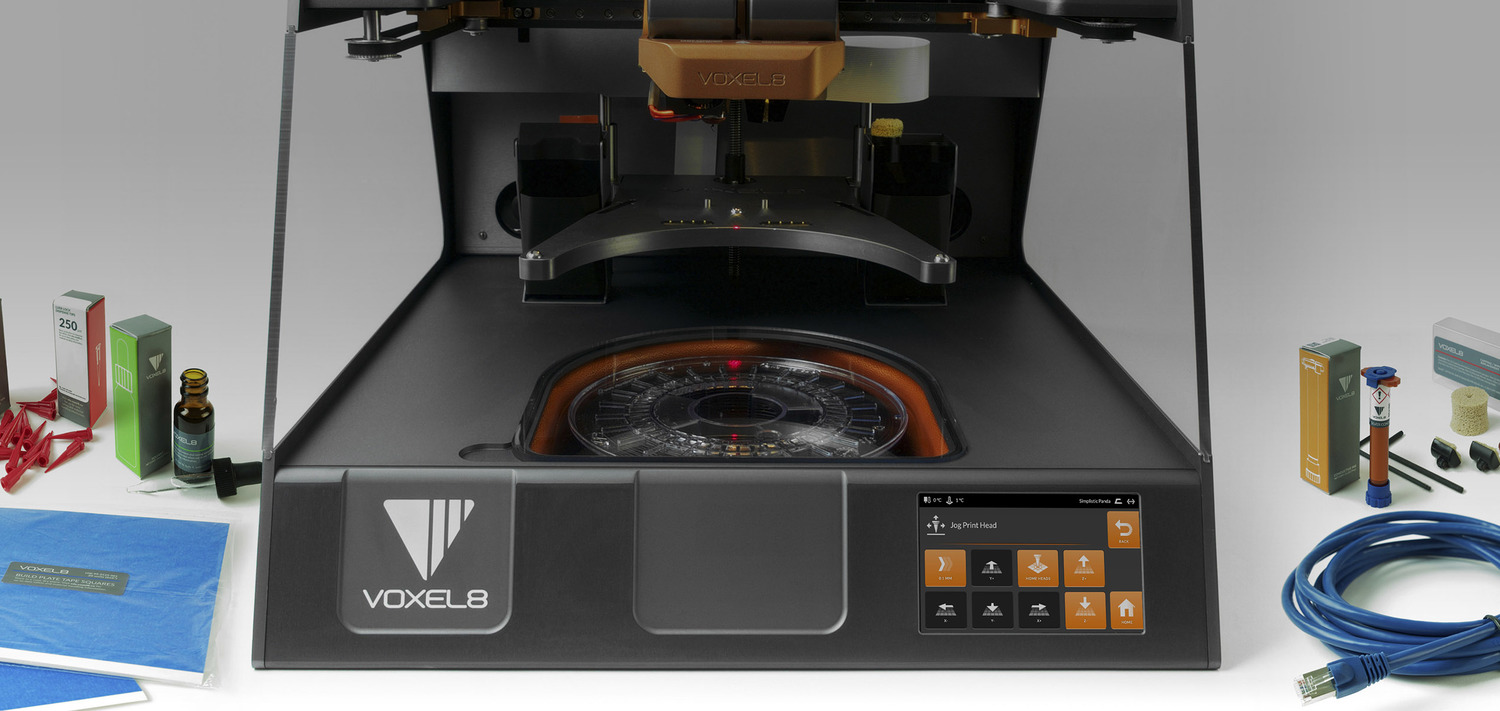

Voxel8多材料3D電子打印機


專利的基礎上開發的，具有兩個不同的打印頭，一個是基于常見FFF/FDM技術的使用熔融線材的打印頭，另外一個則是使用導電銀墨水的打印頭

Voxel8的te制油墨會通過一個250微米直徑的專用噴嘴進行沉積。一旦打印，會在室溫下很快干燥，不需要后處理。這些性質使得它能夠在傳統的熱塑性材料上打印。3D電子打印需要具備在打印過程插入多個元器件的能力。而Voxel8桌面3D打印機配置了一個具有高度可重復性的磁性打印床，能夠讓您在打印過程中把打印對象暫時取下來，插入元器件，如LED或傳感器等，然后再放回去繼續打印過程。


這種技術的潛在用途很廣泛，可用于印刷電子、用于組織工程的3D聚合物支架和用于能量收集儲存的材料等。
Voxel8開發工具包（8999美元）將包括：
●Voxel8桌面型3D電子打印機
●Access to Autodesk Wire 3D Electronics軟件
●云切片軟件
●球免費送貨
●4卷PLA線材，每卷1公斤
●10個導電墨水盒，每盒可打印60米
●1個附加的打印床

Voxel8多材料3D電子打印機的技術規格：

●打印技術：FFF、氣動直寫（Pneumatic Direct Write）

●大打印尺寸：10×15×10厘米
●層分辨率：200微米
●線材直徑：1.75毫米
●暫停/恢復打?。菏?/span>
●打印床：運動連接
●導電墨跡寬度：250微米
●支持文件：STL、PLY、OBJ、OFF、AMF
●連通性：USB、wu線網絡
●支持瀏覽器：Chrome、火狐
●打印材料：PLA、導電銀油墨
●電阻率：5.00×10-7Ω-M
●銀油墨固化時間：5分鐘

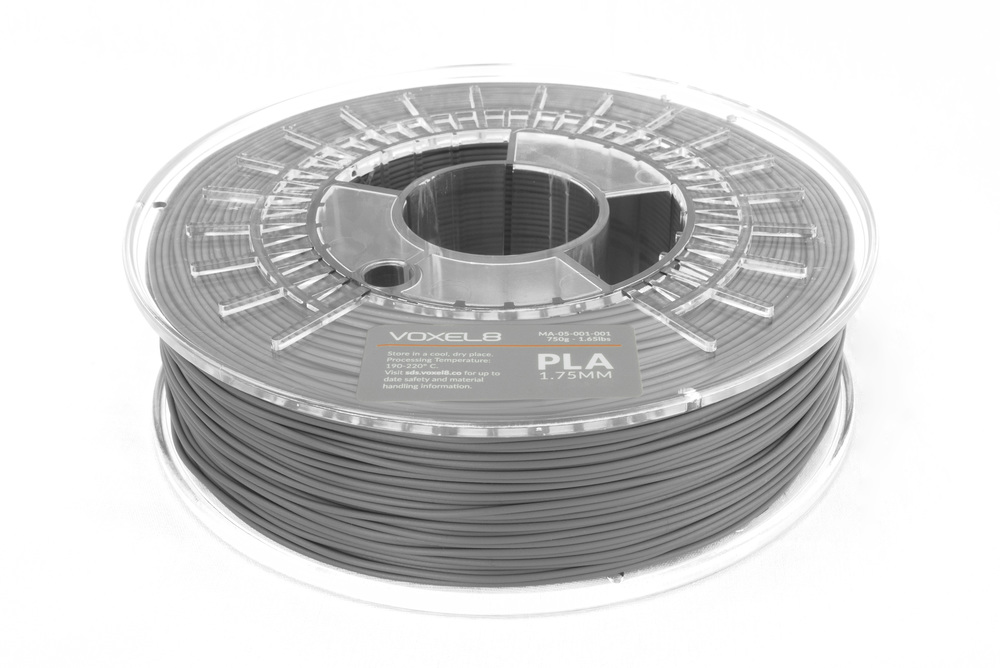

PLA Reel - Dark Grey (0.75kg)

Voxel8’s PLA has a filament diameter of 1.75 mm, is colored Dark Grey, and comes with a clear reel to quickly check remaining filament. Our PLA is subject to rigorous quality control to ensure a consistent filament diameter and optimum performance with our closed loop laser alignment system.

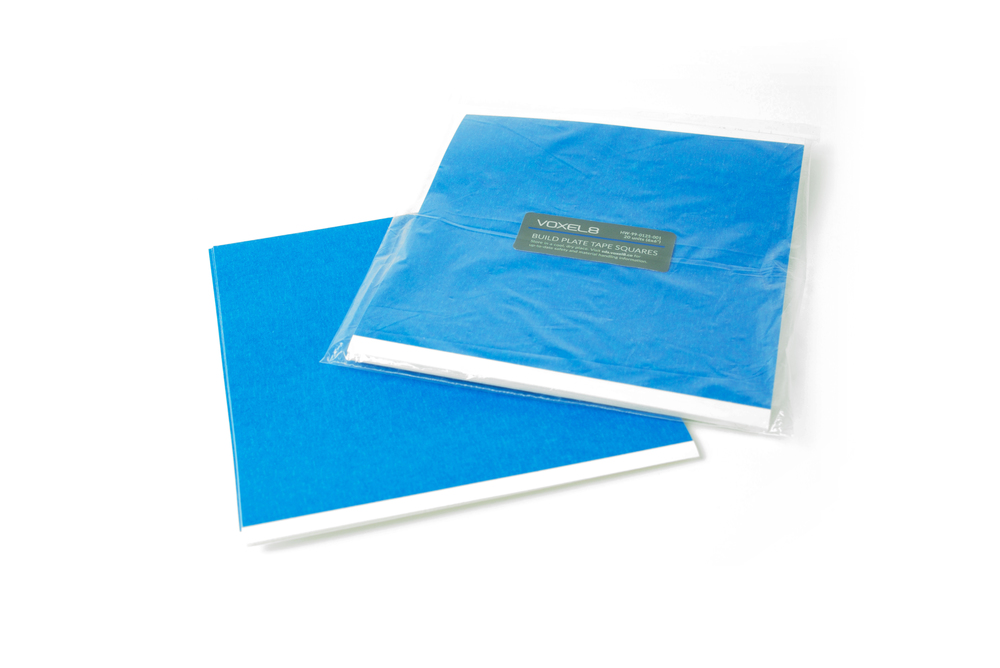

Build Plate Tape Squares


Build Plate Tape Squares are a convenient way to increase PLA adhesion to the build plate and prevent wear. Each square is cut to fit to the Developer’s Kit build plate size of 150 x 150 mm.

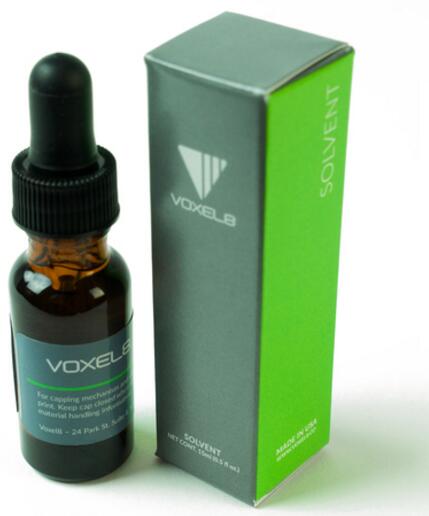

Capping Solvent (14 cc)


Capping Solvent is used to prevent the room temperature curing silver ink from drying in the dispense tips, causing clogging. A small amount of solvent is applied to the silver capping mechanism on a regular basis.

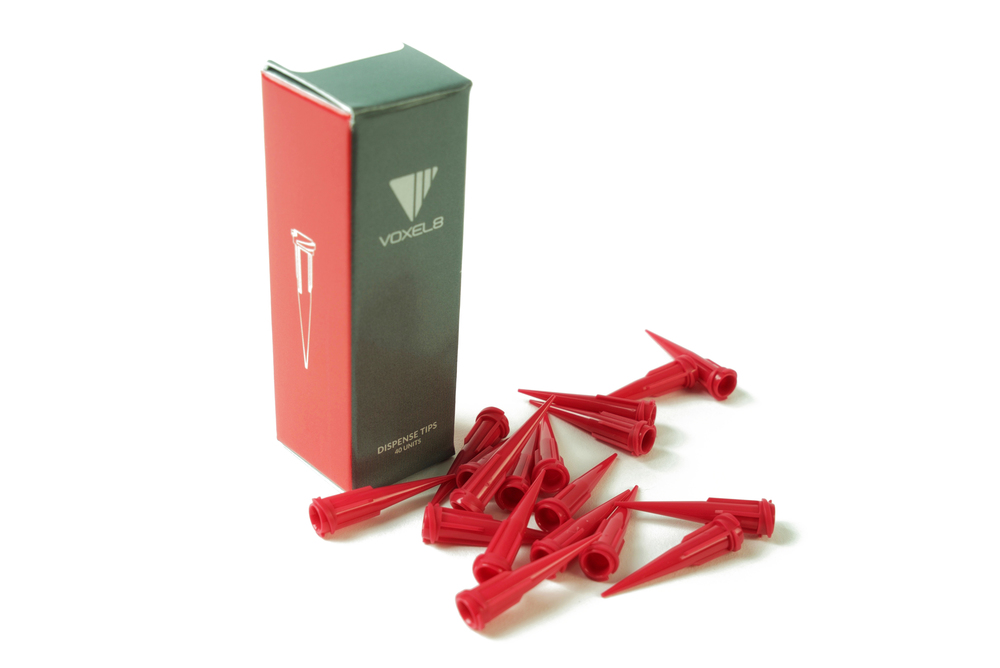

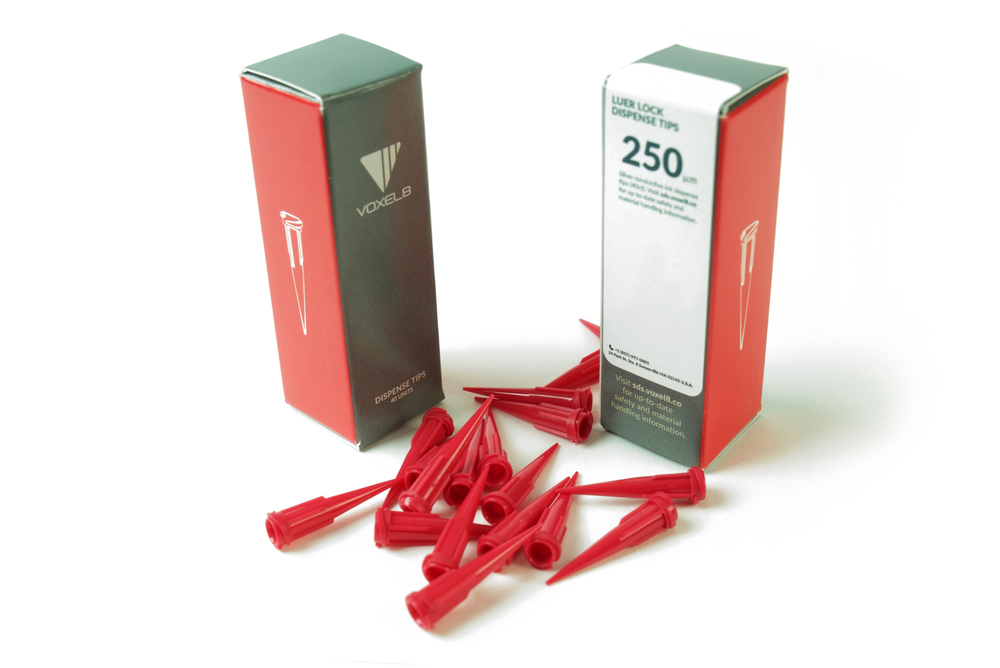

voxel8 Dispense Tips (40 pieces)，電子材料打印針尖，電子材料打印針頭


Dispense Tips with a 250 micron aperture. Tips are replaced by screwing them into the bottom of the silver ink syringes. Regular use of Capping Solvent and replacement of Dispense Tips is recommended for high quality silver prints.

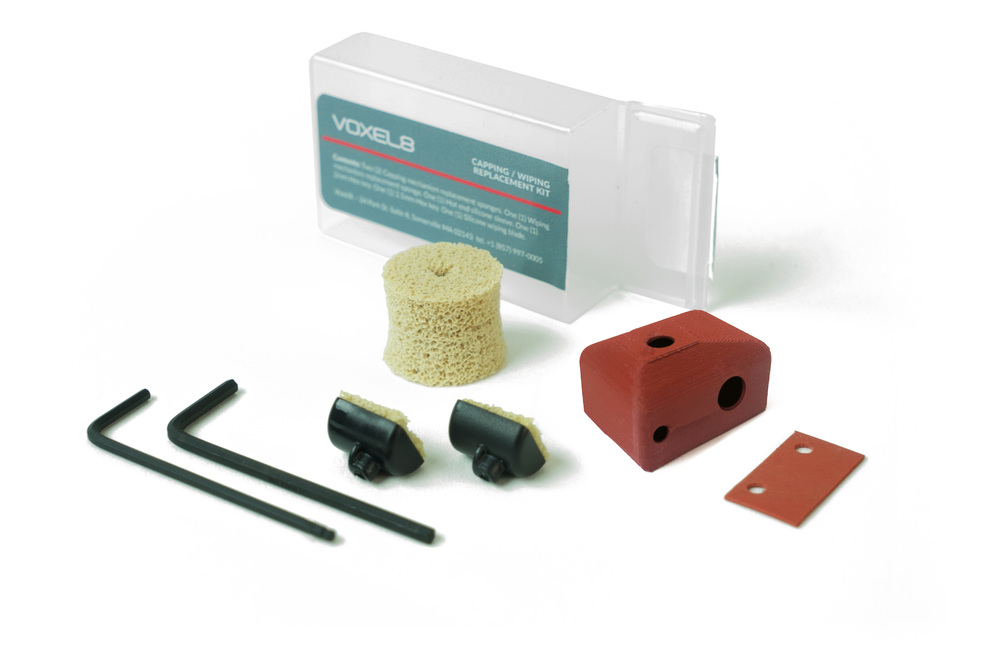

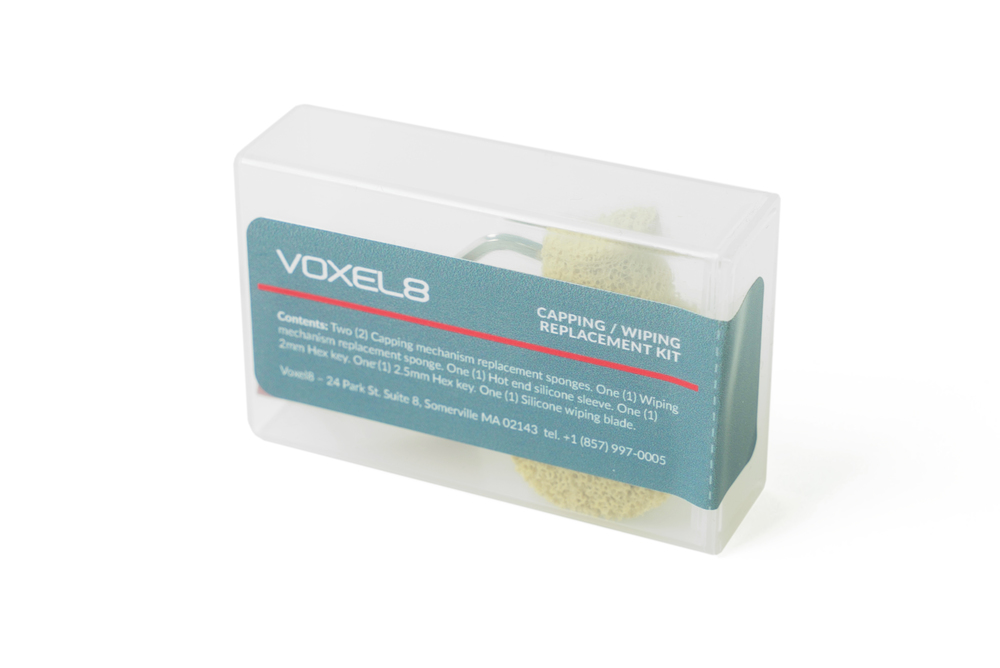

Silver Ink Capping  Wiping Kit



The Capping / Wiping Kit contains the following consumable parts for the Developer’s Kit 3D Printer:

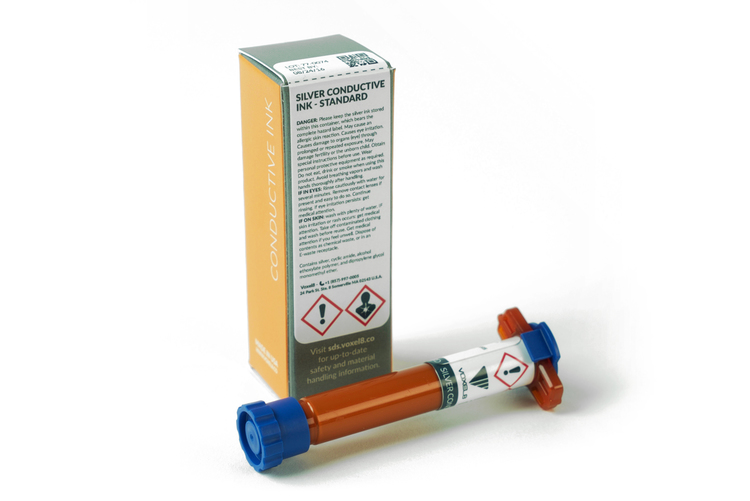

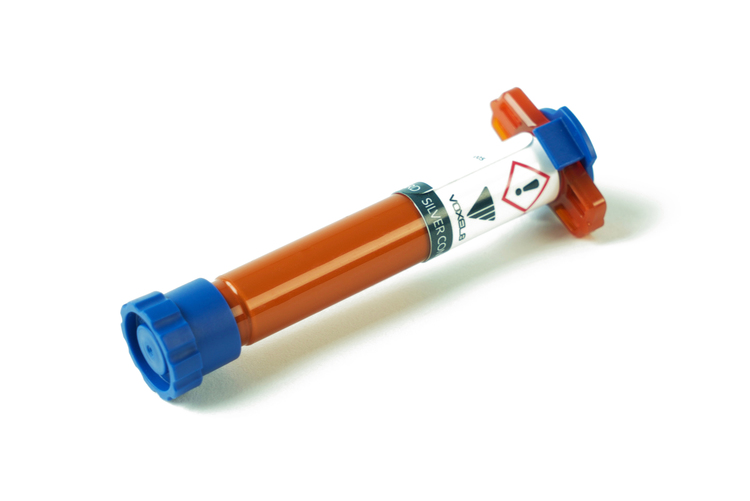

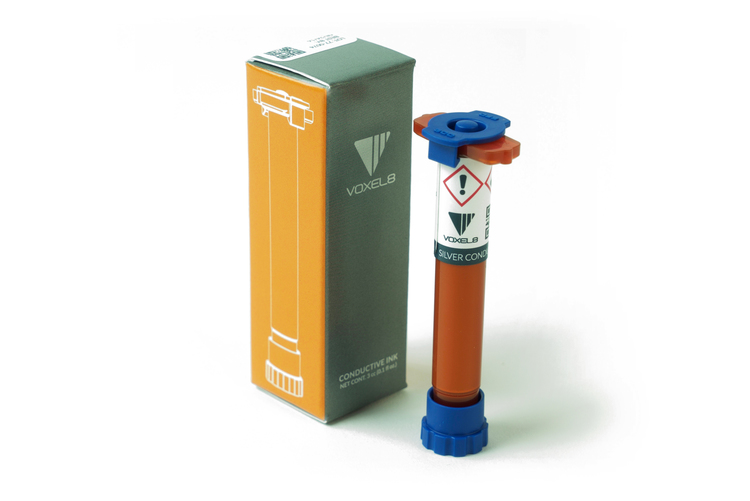

voxel8 Standard Silver Ink ,導電銀墨水(Conductive silver ink)

voxel8 Standard Silver Ink ,3D電子材料打印墨水，3D打印電子材料墨水，導電銀墨水(Conductive silver ink)


導電銀墨水（Conductive silver ink）一般屬于水基或醇基墨水，其組分是納米銀微粒、溶劑（水或醇類）、表面活性劑、分散穩定劑和其他助劑

一種高導電性的銀色油墨，用于印刷3D電子。每個墨盒包含3cc的銀墨水，可以打印大約60米的導電痕跡。

標準銀墨在室溫下快速干燥，產生高導電性的電極痕跡，wu需額外的固化步驟?？梢杂嗁忣~外的配制針頭，以確保打印可靠的銀色特征

A highly conductive silver ink formulated for printing 3D electronics. Each cartridge contains 3cc of silver ink that can print approximately 60 meters of conductive trace.

Standard silver ink dries quickly at room temperature yielding highly conductive electrode traces without additional curing steps. Additional dispense tips can be ordered to ensure printing of reliable silver feature。
