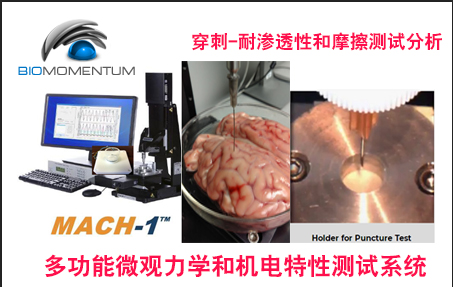

BMM 多功能微觀生物力學系統之穿刺材料組織耐滲透性測試和摩擦

型號:MachOne
聯系人:李先生
聯系電話:18618101725
品牌:加拿大BMM


多功能組織材料生物力學特性、電位分布測試分析表征系統
多載荷多物理場耦合微觀力學性能原位測試系統

-之材料組織耐滲透性測試（PUSH-OUT TEST）


耐滲透性測試涉及將探針（通常是針或圓錐形）插入材料中。 對于薄的柔性材料，耐滲透性是重要的終使用性能參考，其中鋒利的產品會損壞包裝材料。 各種參數會影響對滲透的響應，例如 膜厚，機械性能，穿透速度，探頭尺寸和形狀。

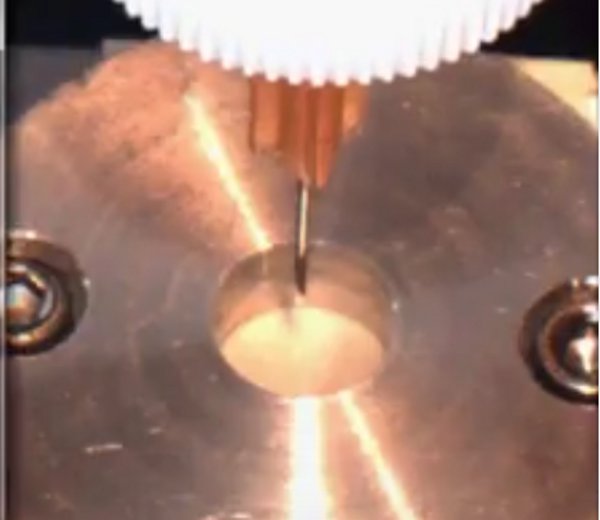

穿刺測試夾具MA735

該附件可正確夾持片狀材料，以在滲透測試期間保持其筆直和水平。

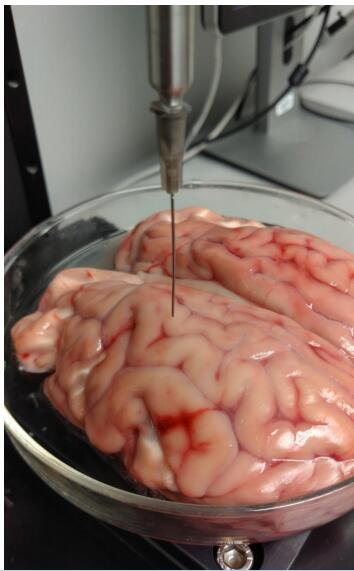

針刺和摩擦測試





該系統是能集成壓縮、張力、剪切、摩擦、扭轉和2D/3D壓痕、3D輪廓及多力混合耦連測試的一體化微觀力學測試裝置。能對生物組織、聚合物、凝膠、生物材料、膠囊、粘合劑和食品進行精密可靠的機械刺激和表征。允許表征的機械性能包括剛度、強度、模量、粘彈性、塑性、硬度、附著力、腫脹和松弛位移控制運動。

特點

1、適用樣品范圍廣：

1.1、從骨等硬組織材料到腦組織、眼角膜等軟組織材料

1.2、從粗椎間盤的樣品到j(luò)細纖維絲

2、通高量壓痕測試分析

2.1、三維法向壓痕映射非平面樣品整個表面的力學特性

2.2、48孔板中壓痕測試分析

3、力學類型測試分析功能齊

模塊化集成壓縮、張力、剪切、摩擦、扭轉、穿刺、摩擦和2D/3D壓痕、3D表面輪廓、3D厚度、粘合、塔接結合力等各種力學類型支持,微觀結構表征及動態力學分析研究

4、高分辨率:

4.1、位移分辨率達0.1um

4.2、力分辨率 達0.025mN

5、 行程范圍廣：50-250mm

6、體積小巧、可放入培養箱內

7 、高變分辨率成像跟蹤分析

8、多軸向、多力偶聯刺激

9、活性組織電位分布測試分析

10、產品成熟，文獻量達 上千篇







該微觀力學測試分析與培養系統初該系統為軟骨力學性能檢測所研發，此后集成了多種配置以滿足更多生物組織和軟質材料力學性能的測量和評估。該儀器卓越性能特點--模塊化設計，簡易操作平臺，面向用戶設計，廣泛應用于生物材料檢測，高分子材料檢測以及數字教學等領域，產品得到了業界廣泛的認可和推廣。該系統

相比于傳統的大型力學測試系統，該微觀力學測試系統總體較小，可以實現桌面化的操作流程，操作過程簡便。該系統測試方法面，是多樣化的材料力學表征工具，是科學家、工程師和其他各領域用戶的佳選擇。在動態力學分析、薄膜、復合物、聚合物、生物產品、醫學鑒定和水凝膠等領域都有廣泛應用。







穿刺材料組織耐滲透性測試和摩擦典型文獻參考

A comparative biomechanical analysis of term fetal membranes in human and domestic speciesBorazjani A, Weed BC, Patnaik SS, Feugang JM, Christiansen D, Elder SH, Ryan PL and Liao JAmerican journal of obstetrics and gynecology, 204(4), 365. e325-365. e336. (2011)
OBJECTIVE: The purpose of this study was to biomechanically characterize and compare human, porcine, equine, and ovine fetal membranes.

STUDY DESIGN: Noncontact metrology was used for topographic analyses. Uniaxial tensile testing was performed to resolve specific biomechanical values. Puncture force and radial stresses were determined with biaxial puncture...Read More
ASTM D5748 - Standard Test Method for Protrusion Puncture Resistance of Stretch Wrap FilmASTM International, West Conshohocken, PA, 2012, www.astm.org
Significance and Use

Puncture resistance is very important in end-use performance of stretch wrap film used in consumer and industrial product applications. Puncture resistance is a measure of the energy-absorbing ability of a stretch wrap film in resisting a protrusion. The test method is designed to provide the user with a means of measuring the stretch wrap film's puncture...Read More
ASTM F1306 - Standard Test Method for Slow Rate Penetration Resistance of Flexible Barrier Films and LaminatesASTM International, West Conshohocken, PA, 2016, www.astm.org
A comparative biomechanical analysis of term fetal membranes in human and domestic speciesBorazjani A, Weed BC, Patnaik SS, Feugang JM, Christiansen D, Elder SH, Ryan PL and Liao JAmerican journal of obstetrics and gynecology, 204(4), 365. e325-365. e336. (2011)
OBJECTIVE: The purpose of this study was to biomechanically characterize and compare human, porcine, equine, and ovine fetal membranes.

STUDY DESIGN: Noncontact metrology was used for topographic analyses. Uniaxial tensile testing was performed to resolve specific biomechanical values. Puncture force and radial stresses were determined with biaxial puncture...Read More
ASTM D5748 - Standard Test Method for Protrusion Puncture Resistance of Stretch Wrap FilmASTM International, West Conshohocken, PA, 2012, www.astm.org
Significance and Use

Puncture resistance is very important in end-use performance of stretch wrap film used in consumer and industrial product applications. Puncture resistance is a measure of the energy-absorbing ability of a stretch wrap film in resisting a protrusion. The test method is designed to provide the user with a means of measuring the stretch wrap film's puncture...Read More
ASTM F1306 - Standard Test Method for Slow Rate Penetration Resistance of Flexible Barrier Films and LaminatesASTM International, West Conshohocken, PA, 2016, www.astm.org
Significance and Use

4.1 Penetration resistance is an important end-use performance of thin flexible materials where a sharp-edged product can destroy the integrity of a barrier wrap. This will permit package entry/exit of gases, odors, and unwanted contaminates, causing potential harm to the product and reducing shelf-life. Material response to penetration will vary with numerous...Read More
ASTM D3787 - Standard Test Method for Bursting Strength of Textiles—Constant-Rate-of-Traverse (CRT) Ball Burst TestASTM International, West Conshohocken, PA, 2016, www.astm.org
Significance and Use

5.1 This test method for the determination of ball bursting strength of textiles is being used by the textile industry for the evaluation of a wide variety of fabrics.
5.2 Test results obtained using the procedures in Test Method D3787 have not been correlated with actual performance. Test Method D3787 is considered satisfactory for acceptance testing...Read More
Dynamic Axial Loading Disrupts Lateral Integration of Arthritic Human Articular Cartilage and Synthetic Tissue Engineered Scaffolds in an Ex Vivo Ring ModelMintz BR, Papaliodis D, Jordan S, Leonard G, Mulligan M and Cooper JAOrthopeadic Research Society Annual Meeting in Las Vegas, 2015, Abstract 0390
Introduction: Common surgical procedures including mosaicplasty, microfracture, and autologous chondrocyte implantation to promote articular cartilage regeneration account for ~40% of knee arthroscopy.[1] These procedures are reliant on proper integration between newly placed tissue and surrounding native cartilage to provide a repair capable of reducing shear during articulation and resisting...Read More
ASTM F2451-05 - Standard Guide for in vivo Assessment of Implantable Devices Intended to Repair or Regenerate Articular CartilageASTM International, West Conshohocken, PA, 2010, www.astm.org
Significance and Use

This guide is aimed at providing a range of in vivo models to aid in preclinical research and development of tissue engineered medical products intended for the clinical repair or regeneration of articular cartilage.
This guide includes a description of the animal models, surgical considerations, and tissue processing as well as the qualitative and quantitative...Read More
Improved cartilage integration and interfacial strength after enzymatic treatment in a cartilage transplantation modelvan de Breevaart Bravenboer J, In der Maur CD, Bos PK, Feenstra L, Verhaar JA, Weinans H, van Osch GJArthritis Res Ther. 2004;6(5):R469-76. Epub 2004 Aug 6
The objective of the present study was to investigate whether tr
